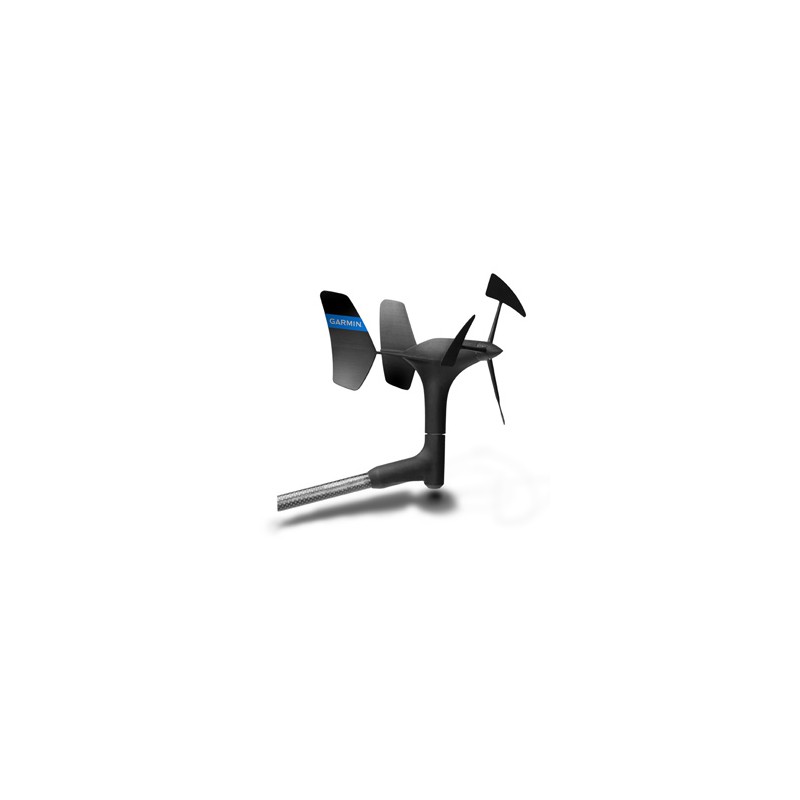

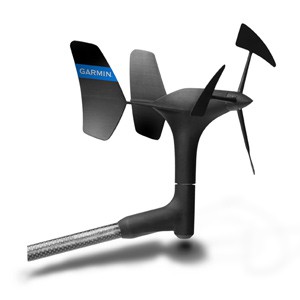

Vane anemometer GARMIN GWind

• 3 propeller blades for greater precision even in low wind
• Design double fin for stability in the wind
• Technique of scanning for superior performance and excellent linearity
• GND™ 10 module allows you to easily communicate the Nexus instruments with Garmin (NMEA 2000®) devices - and vice versa.

Vane anemometer gWind is equipped with an innovative and exclusive design for leading performance. Its dual fin design and its propeller 3 blades provide excellent performance by all wind conditions. The double jibe ensures greater stability while propeller anemometer wind 3 - always effective - blades offers greater precision even with low wind. Information of speed reading is provided by a scanner that provides extreme precision and excellent linearity.

Module GND 10 allows to share information of the weather vane with all NMEA 2000 devices connected to the network. With GND 10 allows to connect a Garmin plotter with all of Nexus instruments, and vice versa.

Features:

• Unit, W x H dimensions: 610mm x 345mm (17.7 "x 11.8")
• Weight: 260 g
• Cable length: 25 m
• Seal: Yes (standard, IPX6)
• Temperature range:-15 ° C to 70 ° C (5 ° F to 158 ° F)
• Voltage range: 9-16 V
• Consumption: 0.33 W
• Compass safe distance: N/A
• Angle accuracy: better than ±1.5 °
• Speed: better than ±3%
• NMEA 2000® load equivalency number: N/A
• Wireless connectivity: no

In the box:

• Vane anemometer gWind
• GND™ 10
• NMEA 2000® (2 m) drop cable
• "T" NMEA 2000® connector
• Nexus network with female connector (25 m) cable
• Cable network Nexus (5 m; straight plug)
• Female connector Nexus online
• Mast support
• Fixing Kit
• Documentation
