Electroscan - Bacteriological treatment of black water
For boats with a length of 40' to 50' (from 12 to 16 m)

Rejected in sea water is bacteriologically neutral, without chemicals for the protection of the environment. He brings the solution to treat the black water individually.
Available in 12 or 24 VDC can deal with the dark waters of all manual or electric WC consuming a few litres of water per flush, which is the most frequent case. (the Electro-Scan is not directly compatible with the WC working under vacuum).
Because of his technique, the Electro-Scan can process the contents of a flush water every 2 minutes (special device for 2 toilets).
This device is approved by the AMERICAN COAST GUARD and its classification according to USA standards is the health Navy TYPE I type for boats with a length < 20 m. Treated black water can be stored in a tank or directly returned to the sea, which in this case allows significant weight gain.

Treatment cycle: (About 2 minutes)
Under the action of water, the charged water arrives in the first room. The salt content in the sea water is broken down into sodium and chlorine. The latter is a bactericidal powerful neutralizing bacteria and other organic products. Unused chlorine is recombinant sodium.

The arrival of the 2nd Flush, the charged water pushes the first water treated in the 2nd room. The system of control of the electro-Scan simultaneously triggers the same operation in the 2 rooms of the tray.

3rd hunting renews the cycle and the water treated in the 2nd room is evacuated to the sea or in the storage tank.

Possibilities:
-To operate the Electro-Scan is on the Panel of the Lac treatment or from the outbreak of the electric toilet.
-To connect with electric or manual WC (except in the WC working under vacuum).
-To pair 2 WC on the same tray of treatment (maximum distance: 6', either 1 m 800) with the optional coupling kit.

Compared to the Lectra-San :
-The electronic control module to optimize treatment by electrolysis of sea water, while reducing power consumption.
-An LCD screen to view the System State and the result of different diagnoses.

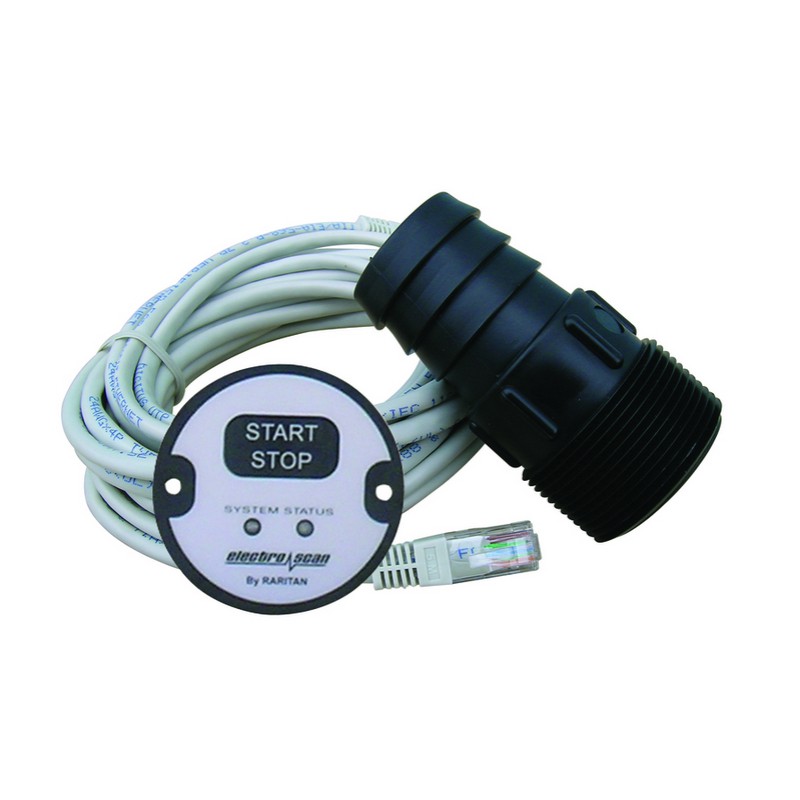

-A control panel allows commissioning with LEDS control also works in freshwater using a tank to salt (optional).

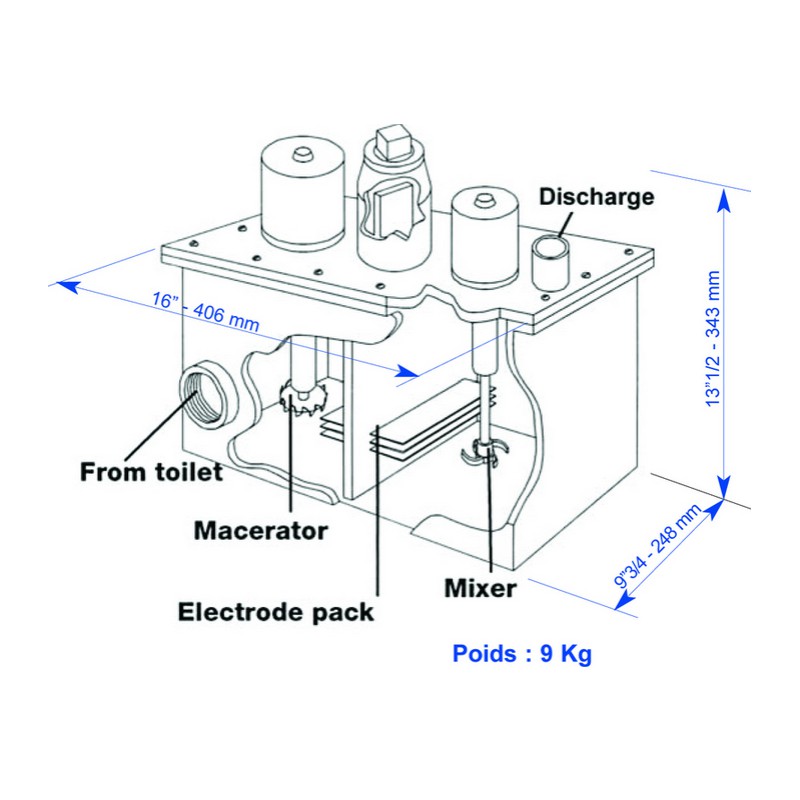

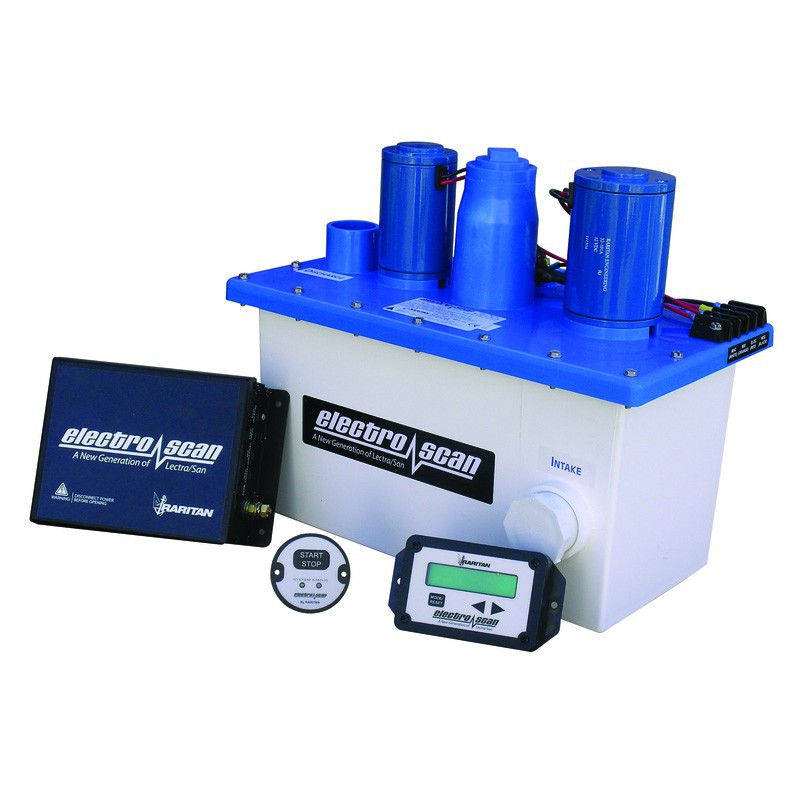

Kit includes: the treatment tray which is separated into 2 rooms each containing 1 set of electrodes that produces a bactericidal disinfectant from salt from sea water.
