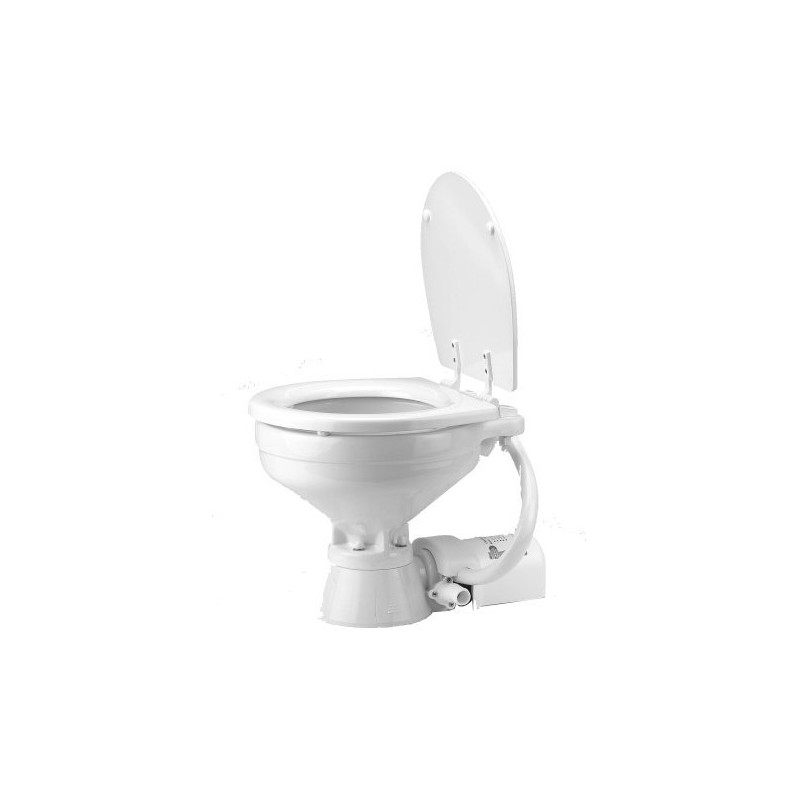

Toilet electric Standard (standard Bowl) JABSCO 37010

W.C. electric JABSCO, standard Bowl Standard, vitreous white.
Economic standard WC, self-priming, valve valve pump. Entry 16-19mm pipe fittings, fittings hose out of 25 to 38 mm, white glazed Bowl. Anti-corrosion materials.
If they are used correctly, the Jabsco electric marine toilet will ensure many years of impeccable service. These toilets are able to evacuate waste water and toilet paper but not the rags, sanitary towels and solid hard objects.


INSTALLATION:
The W.C. electric Jabsco can be installed above or below the waterline. Hunting pump is self-priming with a suction up to 1.22 m (4'); maceration of evacuation pump can operate with a suction height up to 1.22 m.
Do not connect the toilet to the drinking water of the ship to serve as a source of water supply as this may result in contamination. If you prefer fresh water to flush the toilet, use a separate fresh water tank which will only fuel the W.C.

Operating instructions:
Check that inlet and exhaust valves are all open; Press the button to activate the W.C. leave work until the bowl has been completely emptied and the pump has discharged water from the bottom of the bowl.

DESCRIPTION :

• Bezel and seat enameled in compact or standard
• Evacuation to flexible impeller pump
• Motor permanent magnets, completely built with stainless steel shaft
• Large capacity and pump macerator toilet oil return
• Built-in check valve
• Materials all anti-corrosion, for marine use

Dimensions: width 35 cm x depth 43 cm x height 37 cm
