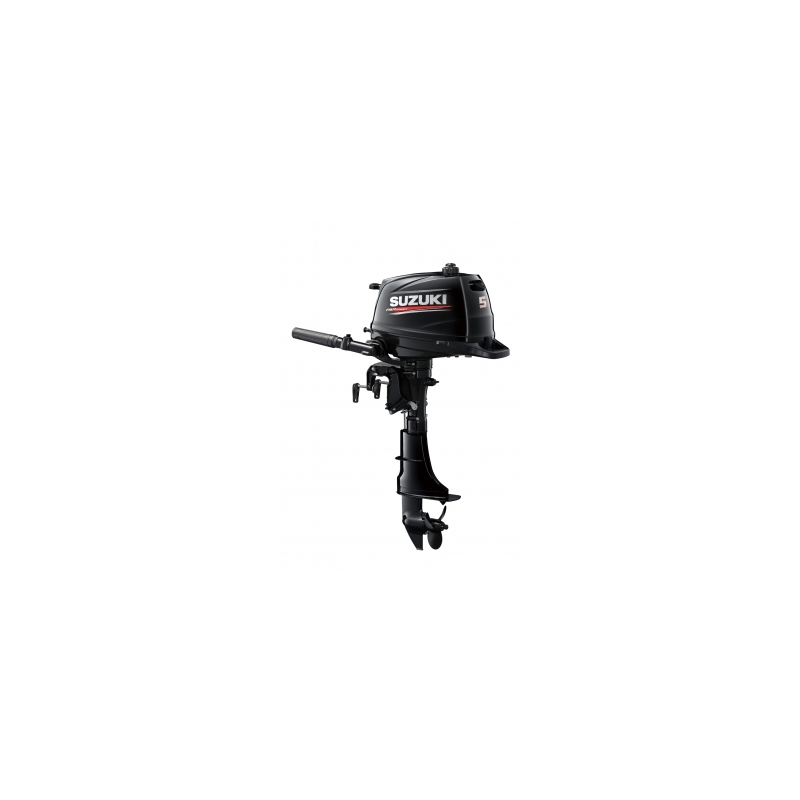

Outboard 5 HP SUZUKI DF 5s

The outboard DF5 is powered by a single cylinder 4 engine time, the displacement reached not less than 138 cm³.

Its excellent torque at half speed, combined with its low weight, allows accelerations of a rare quality. The CDI system offers precision lighting which allows to optimize its performance. It integrates more security which will prevent any risk of overrevving.

The design of the tiller allows a possible more comfortable operating position and a better distribution of weight. Note some other key features of this light engine that has a market selector (forward, neutral, backward) a gyration of 180 ° (for maneuverability), as well as a large carrying handle.

Technical features:

• Type: 4 stroke
• Number of cylinders: 1
• Displacement - cm3: 138
• Engine type: 2 valves
• Fuel supply system: carburettor
• Ignition: Digital CDI
• Bore x race - mm: 62 x 46
• Maximum power - Kw (HP): 3.7 (5)
• Range of use at full power - rpm: 4500-5500
• Alternator: option
• Start-up: manual
• Fuel tank - Litre capacity: 1.5 (built-in)
• Oil capacity - liter: 0.7
• Tree or rear table - length mm: 381
• Weight (in bag with no propeller or oil battery cable) - kg: 25
• Steering: Tiller
• Engine mounting: plastic rings
• Tilt and lift: manual
• Reduction ratio: 1.92:1
• Shift: forward/neutral/reverse
• Exhaust: Above the propeller
• Guaranteed 3 years (for recreational use) engine

ATTENTION:
For reasons of transport, commissioning of the motor is not made.
