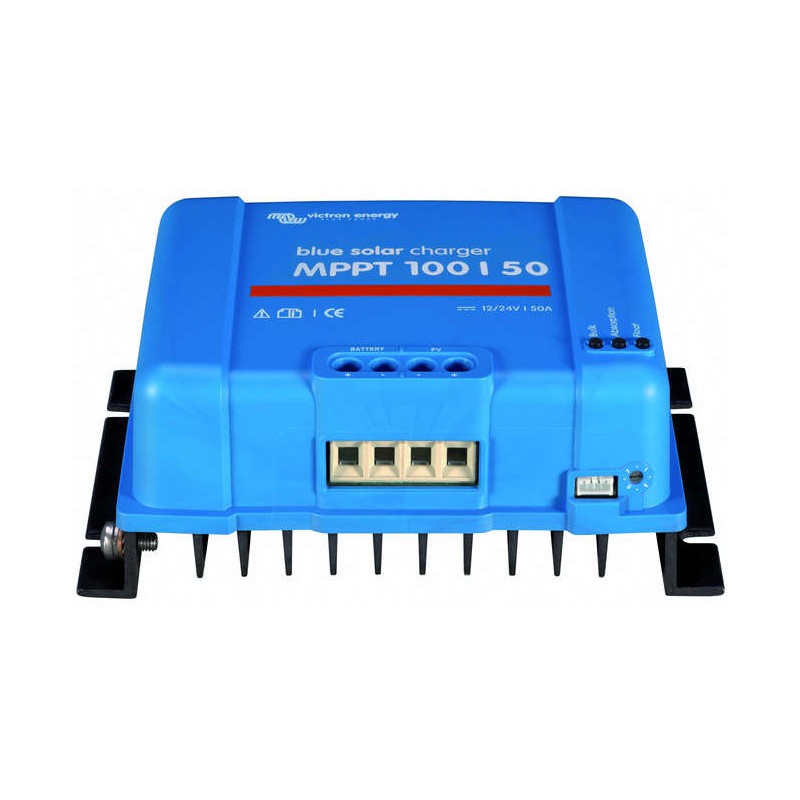

Regulator 12/24V 50A VICTRON ENERGY BLUESOLAR MPPT 100/50 Maximize

Regulator 12/24V 50A VICTRON ENERGY BLUESOLAR MPPT 100/50

424827

318,36 €

-20%

397,95 €

Disponibilité du produit (*)
Expédition : 24 / 48 h
(*) Délai de préparation de votre commande
On sale

Location of the maximum power point (MPPT) controller, allows the increase of load up to 30% compared to a PWM (BatteryLife) controller.

It ensures the effective management of a park of batteries, the Equalization of the optimal load and protection against short-circuits, overcurrent and polarity reversal.

Electronics encapsulated in resin allows a high resistance in marine environment.

Features:

  • Battery voltage: 12/24V
  • Rated load current: 50A
  • Solar maximum open circuit voltage: 100V
  • Load absorption: 14.4V / 28.8V
  • Floating charge: 13.8V / 27.6V
  • Max (12/24V) power: 700W / 1400W
  • Minimum number of cells 12 / 24V: 36 / 72
  • Maximum number of cells 12/24V: 144 / 144
  • Protection class: IP43 (components) IP22 (connections).
  • Standards: IEC 62109-14
  • Mounting: Vertical, on interior wall
