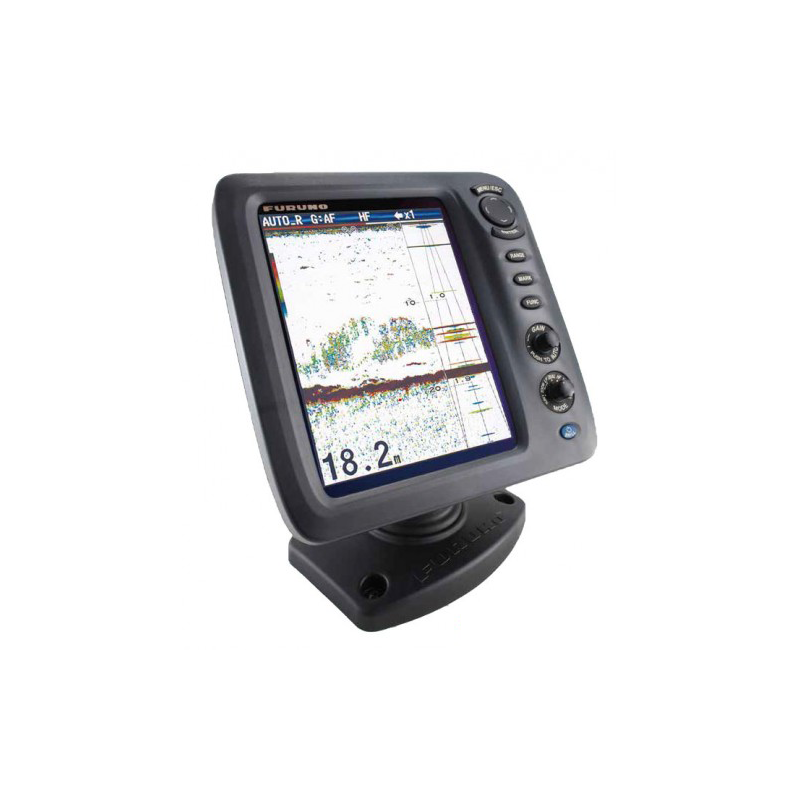

Pollster 5.7 "FURUNO FCV628

The new FCV628 just replace the FCV627 in the range of digital graphic pollsters FURUNO.

Reliable, robust, incorporating the new features from the latest technology of the BBDS1, such as substantive discrimination, the FCV628, connected to the appropriate probe, allows to find the nature of the funds corresponding to the species you want to sin, but also to be certain that you're going to get wet in a healthy place and you can pick up your anchor without problem.

Strong points:
- RezBoost™ is the newest signal processing technology designed by FURUNO. It increases the resolution and discrimination with the use of a conventional probe.
This function simplifies the discrimination of each echo in a school of fish and can distinguish the fourage from predators fish. Locate the fish individually when they are close to the bottom.
With RezBoost™, not only you can expect a level of sharpness and higher resolution, but also more accurately with the battery function - FISH™.

-Substantive discrimination function allowing a view of the nature of the background according to 4 categories: mud, sand, gravel and hard bottom (Rock).

-Function battery-Fish to estimate the size of the fish.

-Function white line to clearly show the structure of the soil and help differentiate the algae to fish near the bottom.

-Post-processing of the gain control: all setting changes (gain,...) are active on the analysis of current signals, but are also repeated on the echoes stored and displayed on the screen.

-Function alarms (depth, echoes of fish, etc.)

-Screen color 6 "LCD with a remarkable brightness of 800cd/m² and a VGA resolution for a better discrimination of the echoes.

Technical features:

• Display: Color LCD
• Type: Pollster chart
• Power (W): 600
• Size (inch) screen: 5.7
• Resolution (Pixels): 480 x 640
• Frequencies (Khz): 50/200
• NMEA0183: Yes
• Power supply: 12/24 VDC
• Sealing: IP56
• Substantive discrimination function: Yes
• Function battery-fish: Yes
• Rezboot: Yes

In the box:

• 1 screen
• 1 cover
• 1 Stirrup
• 1 wheel
• 1 power supply and Data cable 2 m
• 1 cap of extra protection for connector
• 2 fuses
• 1 set of screws
• 1 recessed kit
• 1 cut-out for the built-in template
• 1 built-in gasket
• 1 laminated simplified usage guide (Multilingual)
• 1 user manual
• 1 cleaning cloth

Optional:

• Probe through bronze compatible discrimination from the bottom.
  Beam 45 / 12 ° and adapts to a slope of up to 26 ° with a hoof.
  Dual-purpose depth and temperature probe
  -Power: 600W
  -Bronze
  -Diameter: 22 mm
  -Thread height: 166mm
  -10 pins
  -Supplied with shoe

• Probe transom 3 functions: sounder, speed, temperature
  -Power: 600W
  -Beam 45 and 11 °
  -Speed and temperature
  -Plastic support that rises in case of shock
  -10 pins
  -Tolerated installation angle 2 to 20 °
  -Discrimination function
