Pollster 5 "+ probe TA HUMMINBIRD Helix 5 HD Maximize

Pollster 5 "+ probe TA HUMMINBIRD HELIX 5 G2 HD

H5G2-SHDTA

358,95 €

On sale

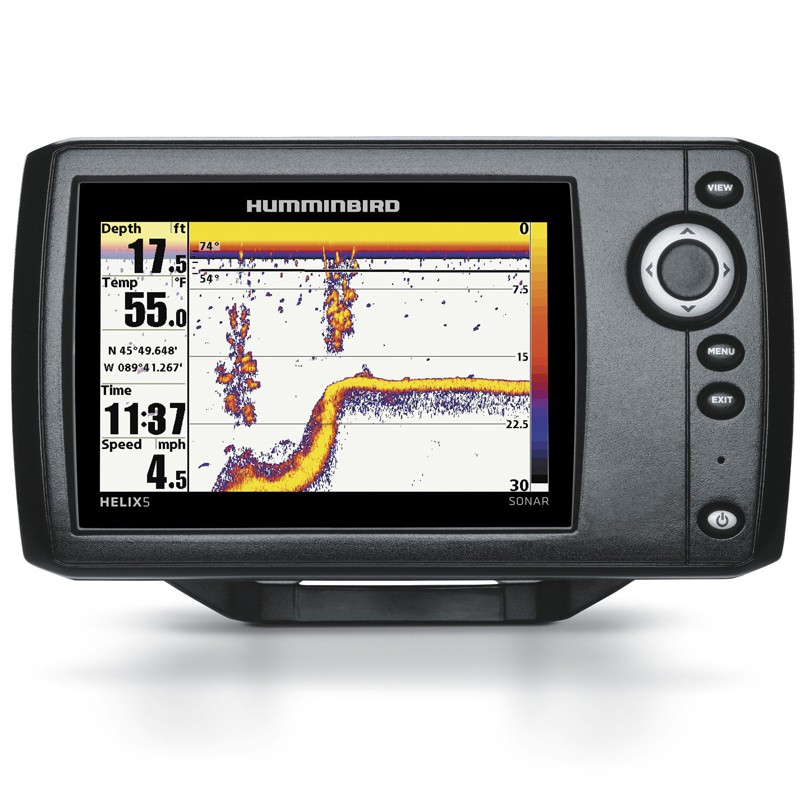

The HELIX 5 G2 of Humminbird series devices to screen 5 "panoramic HD to operate comfortably and easily the information of the pollster.

  • Pollster 2D, 4000 W.
  • Screen LCD 5 " TFT 256 color Plein Soleil.
  • Screen high definition 800 x 480 pixels.
  • Dualbeam technology more.
  • 4000 watts (500 W RMS) peak power.
  • IPx7 waterproofing.
  • Frequencies of 200 kHz / 20 ° and 83kHz / 60 °

Main features:

  • Characteristics of the probe:
    -200 kHz / 20 ° 10db
    -83 kHz / 60 ° 10db
  • Water resistance: IPX7
  • Menu in french
  • Number of beams: 2
  • Total sweeping width: 60 °
  • Side-scan: no
  • Screen type: LCD color
  • Diagonal screen: 5 "panoramic
  • Separation of targets: 6.5 cm
  • Size eran L x H: 110 x 65 cm
  • Screen resolution: 800 x 480 Pixels
  • Standard probe: transom
  • Water temperature
  • Number of colors: 256
  • RMS power: 500W
  • (Peak) power: 4000W
  • Support dImensions: 190 x 130 x 100 mm
  • Recessed dimensions: 190x105x25mm
  • Supply type: 10-20 external Vcc
  • Weight: gross: 1.15 kg

Sounder features:
  • Low battery alarm
  • Temperature alarm
  • Fish alarm
  • Depth alarm
  • Freeze frame
  • Giant figure
  • Customizable data
  • Screen shared with 2 frequencies
  • RTS window
  • Noise filters
  • Fish ID
  • Fish ID +.
  • ID Structure and reverse
  • X-press menu
  • Integrated Simulator
  • Water temperature
  • Scrolling speed
  • Zoom on the bottom



In the box:

  • Sounder screen
  • Probe transom
  • Sensor bracket
  • Editing screen caliper
  • Power cord
  • Manual in french
