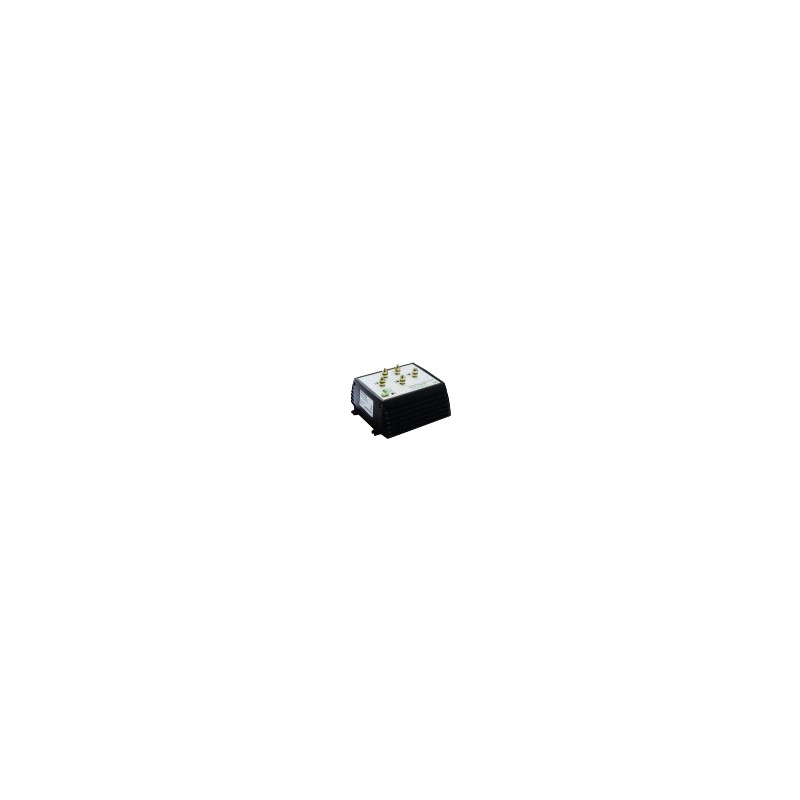

1st electronic load balancer / 3S 100 has CRISTEC

Electronic load NCE 100 A, 1 input, 3 outlets...
These dispatchers (in MOS transistors) isolate the batteries between them parks and heading the charge current automatically to less battery.
They are not unlike the conventional models to diodes voltage drop.
Operation in 12 or 24V from any source of energy (wind, solar panel, battery charger, alternator,...).
Integrated alternator priming (except model 2 entries).
Indicator.

Technical data:
-Operating temperature:-40 ° C / + 85 ° C.
-Standards: 50081-1 (emission); IN 50082-1 (immunity); 60950-1 (Safety).
-Current: 100 A
-Intensity alternator: 150
-Nbr outputs: 1
-Nbr entered: 3
-Point of reference
-Voltage: 12-24 V
-Length: 15.8 cm
-Width: 14.6 cm
-Height: 8.5 cm
-Warranty: 2 years.
