GPS antenna active RS-232 GP - 04S Maximize

GPS antenna active RS-232 GP - 04S

NAV-GP04S/232

158,95 €

On sale

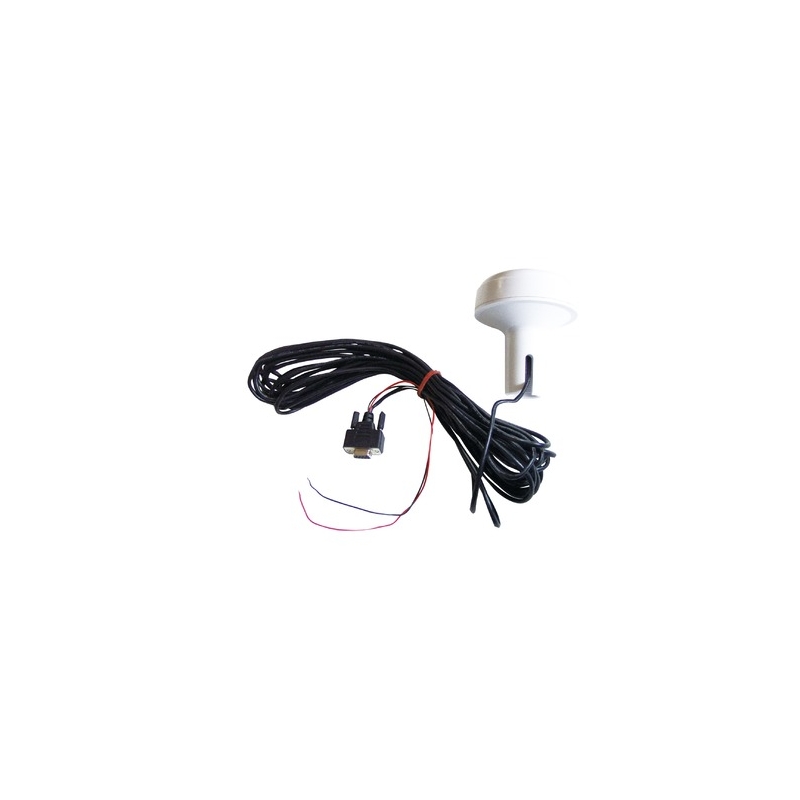

Antenna GPS active Sirf Star III. WAAS-Egnos to 20 parallel channels, waterproof IP67. NMEA 0183 compatible with navigation software and the VHF connection.

-Connection on port series with a 10 meter cable
-Accuracy of about 5 meters CEP
-Programmable on 20 different channels
-Compatible WAAS/EGNOS
-Protocol NMEA 0183 worms. 3.01 4800 baud
-Waterproof to IP67 immersion
-Form 'mushroom' with format 1 inch threaded fixation

Technical data:
-Dimensions: Diameter: 112 mm
-Height: 104 mm
-Cable: 10 meters
-Weight: 834 g with cable
-Operating temperature:-40 ° C to + 85 ° C
-Humidity: 5 to 95%
-Acquisition cold: 45 seconds (-137dBm)
-Acquisition hot: 10 seconds (-145dBm)
-Reacquisition of signal: 1 second
-Limits use altitude:-2000 m to 18,000 + m
-Dynamic: < 4G
-Power supply: 10 ~ 35 Volts
-Consumption: In crete: 110 my / Nominal: 90 my
