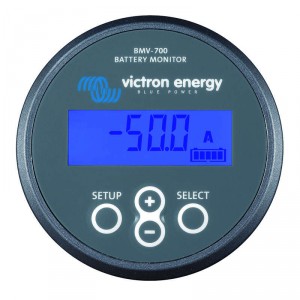

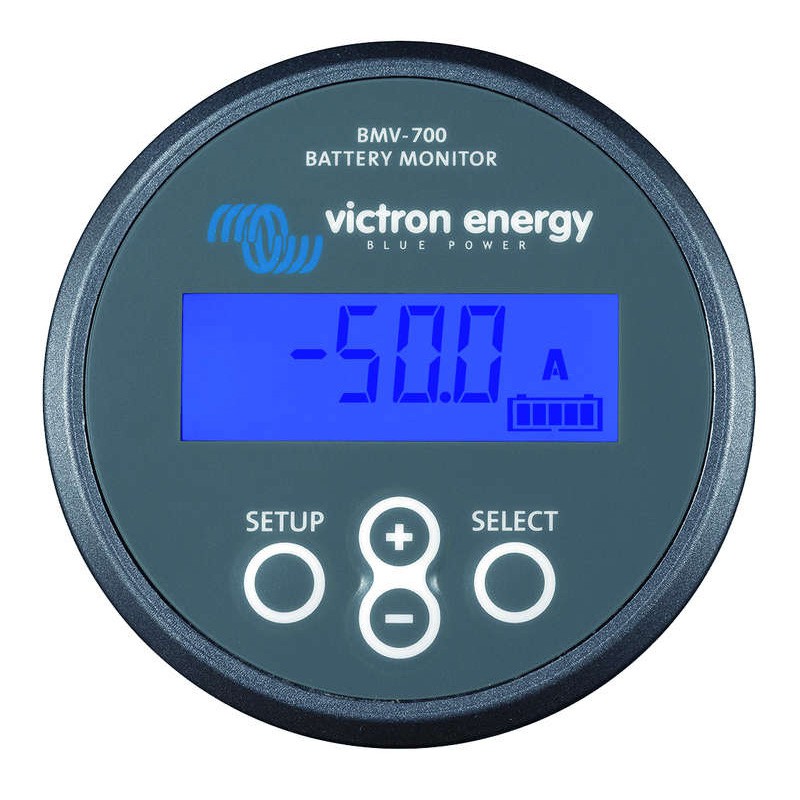

VICTRON ENERGY BMV-700 smart battery monitor

BMV-700 series brings many solutions display and usage:
-Tenion,
-Current a/h consumed,
-Remaining time,
-Consumption in Watt,
-Memorization of the history,
-Bar charge indicators,
-Calculations of the kW loaded, unloaded.

Material provided:
-Shunt 500 A / 50 mV.
-10 m UTP cable with RJ12 connector with fuse to connect supply wire.

Technical features:

• Supply voltage range: 6.5-95 6.5 VDC
• Battery (Ah) capacity: 20-9999 Ah
• Temperature measuring range:-20 ° + 50 ° C n/a.
• VE communication port. Live: Yes
• Relay: 60V / 1 normally open (the function can be reversed)
• Installation: Mounting by imbedding
• Front: Diameter 63 mm
• Before dial: 69 x 69 mm (2.7 x 2.7 inches)
• Body diameter: 52 mm (2.0 inches)
• Body depth: 31 mm (1.2 inches)
• Safety: EN 60335-1
