Controller battery 1 to 3 parks CRISTEC CPS3

1 to 3 parks CRISTEC CPS3 battery gauge

Control the tension and intensity to your batteries...
If you like the CRISTECproducts, it is not only because they are our neighbours, but beautiful and good for quality, reliability and innovation.

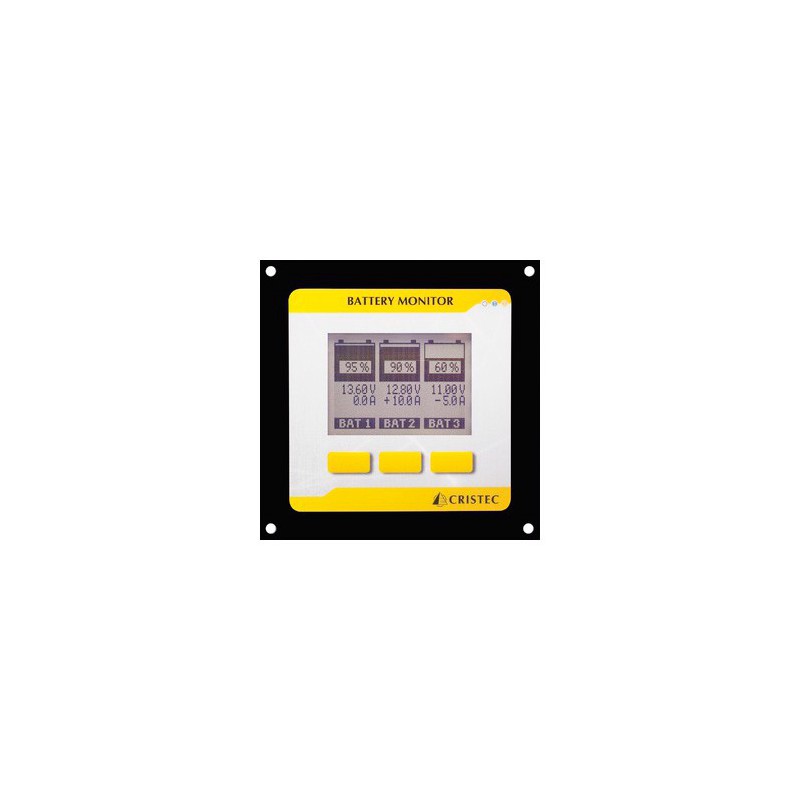

The battery monitor CPS3 was designed to visualize the State of charge, discharge, voltage, current, temperature and the capacity of the batteries.
You can control up to three batteries at the same time, parks up to 2000Ah 12 or 24VDC.
The system works through a navigation menu selectable from keys located on the front and a visualization on a graphic LCD display with backlight embedded.

Detailed features configurable settings:
• Number of parks to monitor battery: 1 (up to 2 or 3 with shunt (s) extra (s))
• Capacity of each battery (Ah) Park
• Low battery voltage alarm threshold *.
• Battery high voltage alarm threshold *.
• Activation or deactivation of the alarm sound
• Type of display for the capacity of the batteries parks (Ah or %)
• Language (french or English)
• Duration of the backlight

Technical data:
• Supply voltage: 8 to 35VDC
• Consumption: without lighting/23mA. with lighting/87mA
• Battery capacity: 1 to 2 000Ah
• Measures: Battery voltage: 0 to 35VDC, current:-300 A to 300 A, temperature: 0 to + 70 ° C
• Display resolution: battery voltage: 0, 02V, current: 0, 1, Temperature: 0.5 ° C, > Precision: ±0, 5%
• Display: white screen positive graphic LCD 128 x 64 pixels, white LED backlight
• Alarms: buzzer, flashing the backlight
• Dimensions: 120mm x 120mm with screen LCD 62 x 44mm • built-in area: H 95 mm x 100mm x d 35mm l
• Temperature: operating: 0 to + 50 ° C, storage:-10 to + 70 ° C
• Made in France

Contents of the PACK:
-The battery monitor CPS3.
-1 kit shunt with a shunt 100mV/A 250 for a battery Park and a 10 m Rj11 cable for monitor a battery Park.
