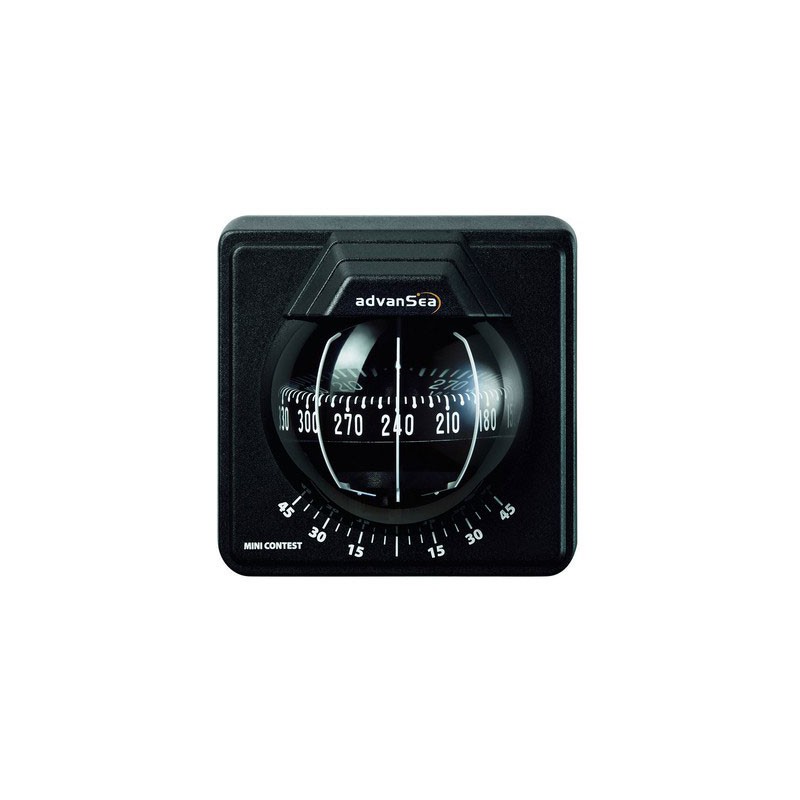

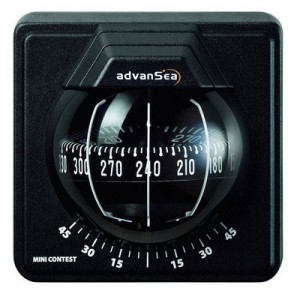

Compass, built-in ADVANSEA Mini Contest

The Mini - ADVANSEA Contest is a highprecision compass designed to harmoniously integrate the range of instruments ADVANSEA.

Features:

• Size of the boat: Sailboat up to 9 metres
• Rose :
  -All graded cylindrical Rose 5 °
  -Apparent O of the rose: 85 mm
  -Reminder of the caps all 30 °

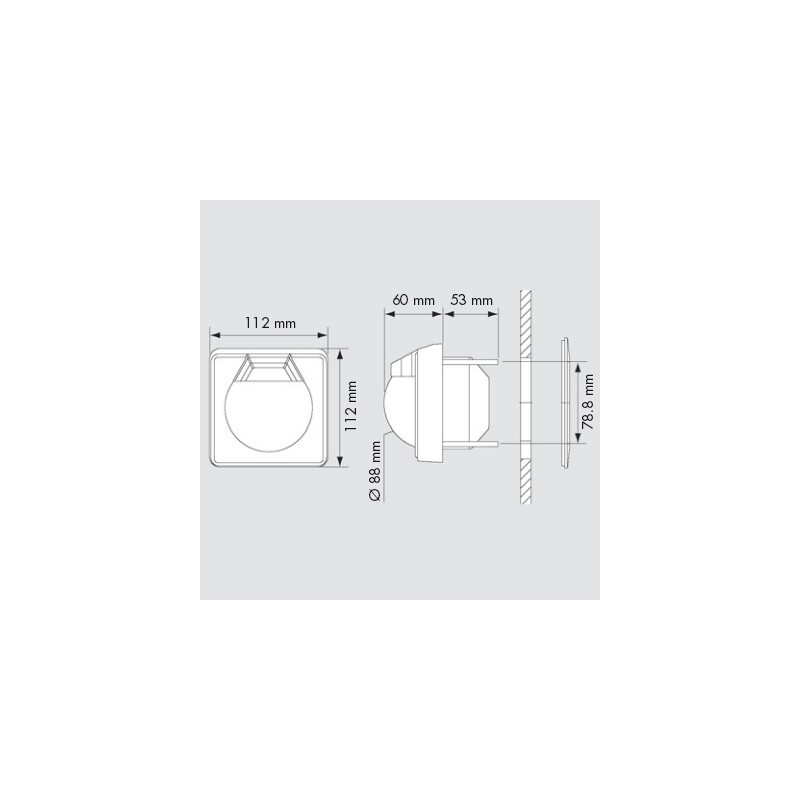

• Mounting type:
  -Recessed on vertical wall
  -Interchangeable with equivalent size compass
• Fits any thickness of partitions:
  -Normal thickness (40mm max): fixing by threaded rod
  -Thickness greater than 40mm or boat with against casting: Parker and the bulkhead screw
• Alidades:
  -3 alidades
  -at 45 °
• Gitometre: Reminder of cottage all 15 °
• Lighting: Of dérie: 1 bulb 12V
• Comes with: Protective cover, drilling template
•  Certification: In accordance with ISO 613
• Warranty: 5 years
