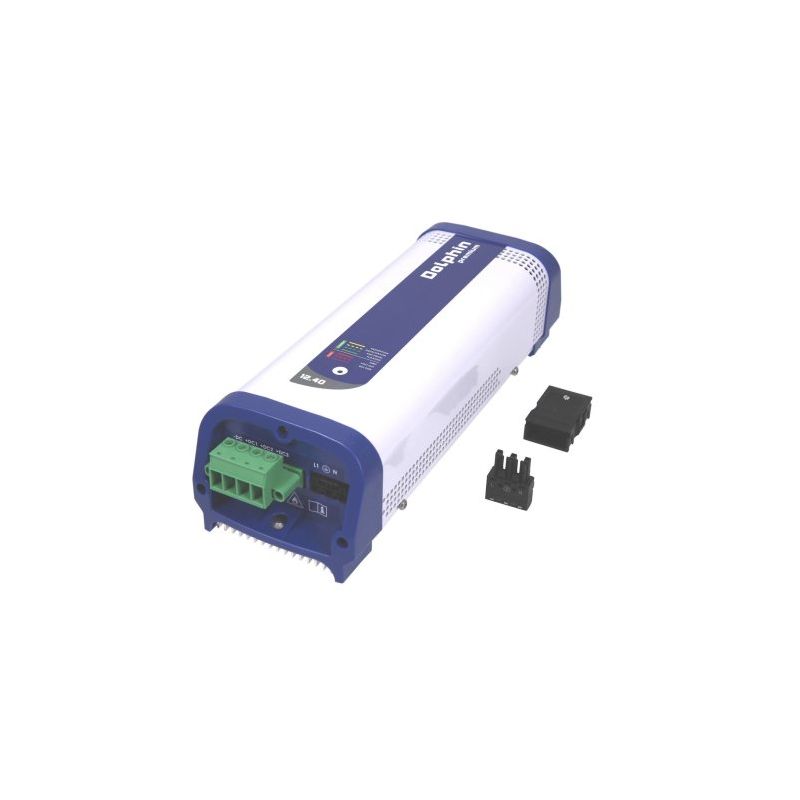

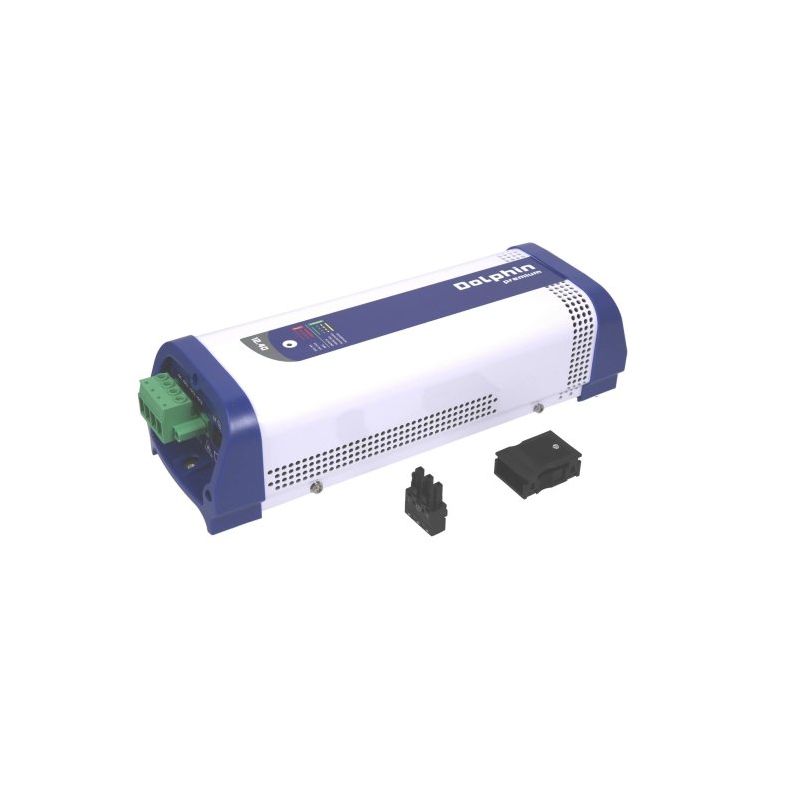

Battery charger marine 12V 40A DOLPHIN Premium

Battery charger marine 12V 40A DOLPHIN Premium

• Digital management up to date RISC microcontroller.
• 4 load curves which a consistent curve for Lithium-Ion-iron-Phosphate battery with integrated BMS card.
• Selection of programs by switch internal dip-switch type.
• Automatic weekly equalization curves throughout.
• New more compact and more robust case.
• Installation and connection easy and fast by the use of plug-in connectors.
• Mode "Night", silent, without ventilation.
• Automatic 115/230V switch.
• 3 outputs isolated independent battery.

Features (model 12V40A)
Entry :
-Supply voltage: 115/230V (+/-15%) Automatic switching.
-Frequency: 50 Hz/60 Hz (+/-10%)
-Performance: 80% typ.
-Conso.maxi 115V/230V: 7A / 3.5 A
-Sector fuse: 250V T10A
Output :
-Number of outputs: 3 independent outputs isolated
-Number of curves of charges: 4 programs, by switch dip-switch type
-Load curve: IUUo
-Equalizer weekly: automatic
-Voltage tolerance: +/-2%
-Waving:
-FUSE: 2 x F25A 32V
Protection :
-Overload and output short-circuit
-Excessive internal temperature
-Too high charging voltage
-Inversion of polarity (fuse) battery
General information :
-Display: Led 3 colors
Temperatures :
-Of operation:-10 ° C to + 50 ° C
-For storage:-20 ° C to + 70 ° C
-Humidity: 10% to 90% (without condensation)
-Ventilation: forced and flow
-Security: EN60335-2-29 (2002)

-Cabinet: Wall painted aluminum
-Attachment: 2 screws Ø 4 mm
-(Teacher x w x top. mm) dimensions: 96 x 120 x 354
