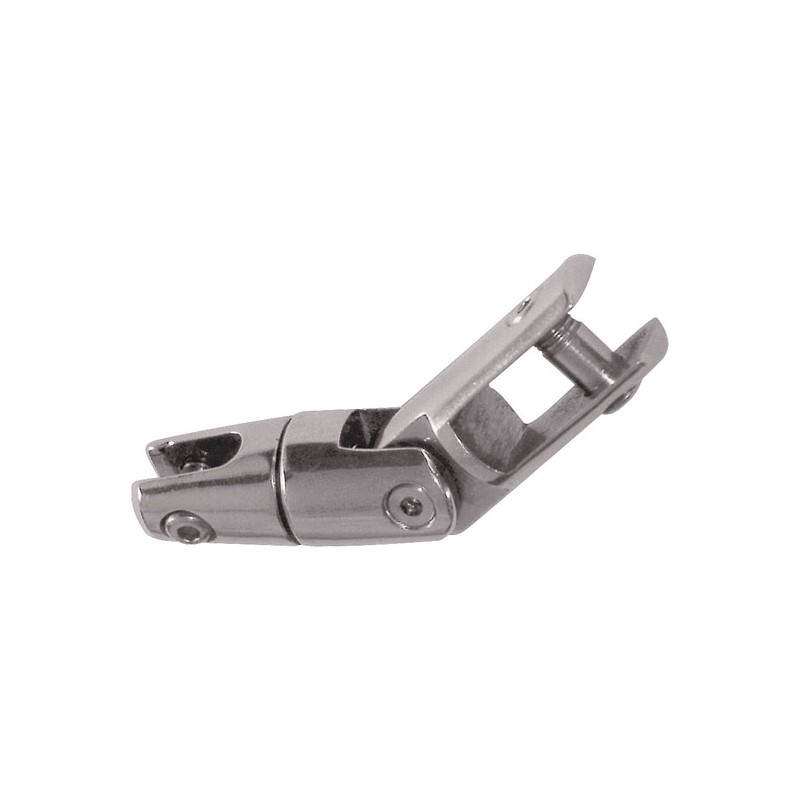

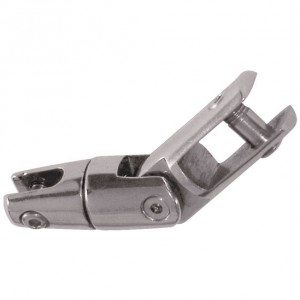

Connector stainless anchor chain PLASTIMO 2 axes molded 1-piece

Anchor chain connectors

For anchors to swivel rod.
Connects the Reed to the chain, facilitates the passage in the davit.

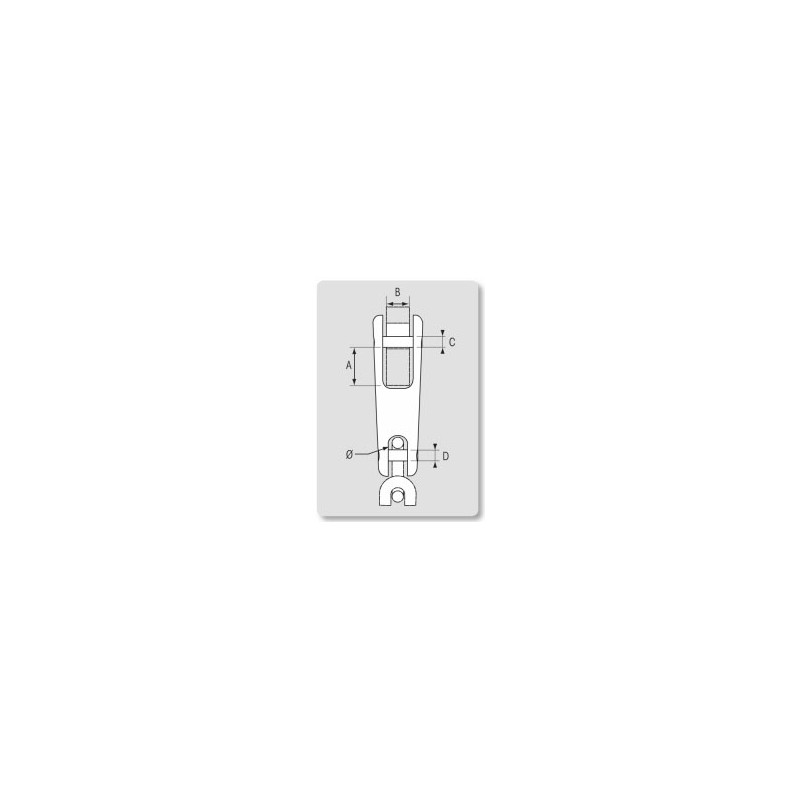

Dimensions models:

• Chain Ø 6-8 mm: length 116 mm
• A: 21.4 mm
• B: 14.8 mm
• C: 11.2 mm
• D: 7.8 mm
• CMU: 600kg
• Chain Ø 10-12mm: length 135 mm
• A: 28.5 mm
• B: 18.1 mm
• C: 13.1 mm
• D: 13.1 mm
• CMU: 1800kg
