With GPS ADVANSEA TR-210 AIS transponder

See and be seen, thanks to this transmitter - receiver AIS class B.

Compact and waterproof, the transceiver AIS class B allows the transmission and reception of AIS information from a pleasure boat.

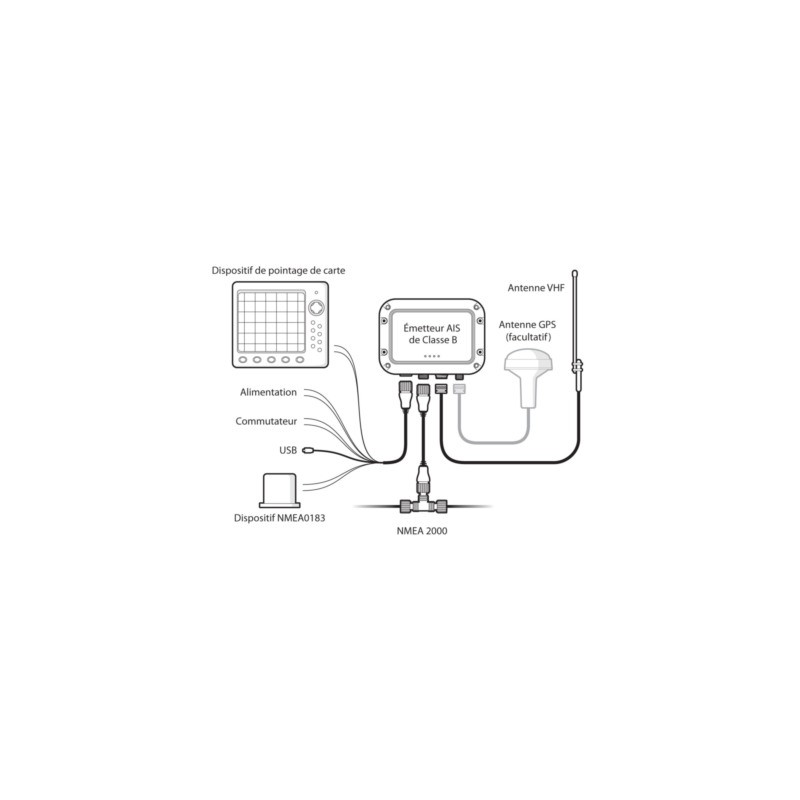

The check simply by entering the MMSI number and some information about the ship, via the supplied PC software. TR-210 AIS connects to the GPS card reader through its NMEA 0183 interface, and to your PC via the USB connection. The GPS antenna necessary for the location of the boat is internal to the product.

Technical features:

• Dimensions: 140 x 100 x 42 mm (L x h x ep)
• Weight: 250g
• Power supply: 12-24 Vdc - average consumption < 2W
  Consumption: 170 my @ 12 Vdc
• GPS receiver: 50 channels - in line with standards IEC 61108-1
• Electric connections: NMEA 0183, 38400 Baud (output) - NMEA 0183 4800 Baud (entry) - USB - NMEA 2000
• Supplied with: power and NMEA 0183 2 m Cable. Use manual, quick start guide, mounting screws, warranty, CD card.
• VHF transmitter: 1 transmitter - 2 receptors.
  Frequencies: 156.025 MHz in steps of 25 KHz. power output 2W.
• User interface: 4 LED for power supply, time + out transmission, error and silent mode.
• Operating temperature:-15 ° C to + 55 ° C
• Water resistance: IPX7. According to standards IEC 60945
